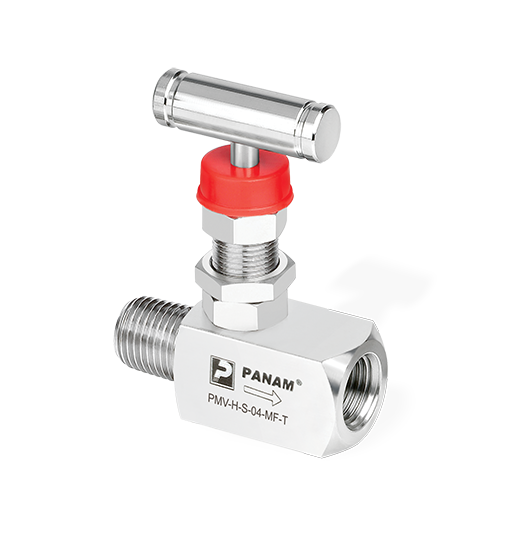

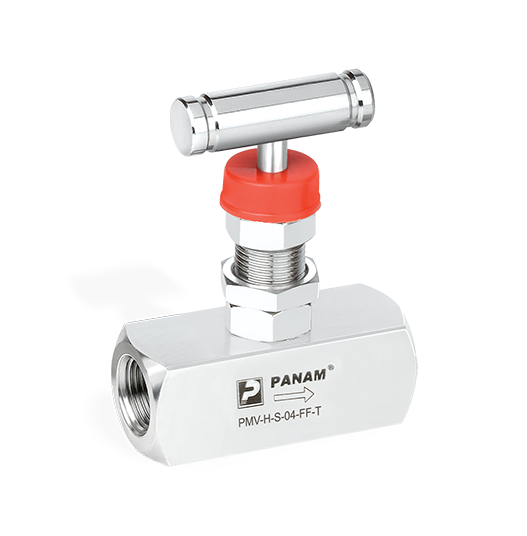

Mini Series Needle Valves
by Valvenok
Original price
£17.39
-
Original price
£18.50
Original price
£17.39
£17.39
-
£18.50
Current price
£17.39
- PANAM SB Needle Valves are available in both Metal seat and Soft seat.
- Needle valve can be used as Block & Bleed valves with vent.
- Needle Valves are available in SS 316, Duplex, Monel & Hastelloy Materials bar stock construction.
- Variety of end connections – Male & Female NPT, BSPP, BSPT, ISO tapered pipe ends & PANAM® & tube fittings.
- Maximum working pressure up to 10,000 psig. (690 bar).
- Size ranging from 1/8″ to 1”
- PTFE standard gland packing, Alternate Graphoil packing for high temperature. Max. temperature upto 538°C (1000°F).
- Non-Rotating Vee-tip / Ball tip provides repetitive & leak tight shut-off.
- NACE certification available upon request.
- Heat code traceability.
