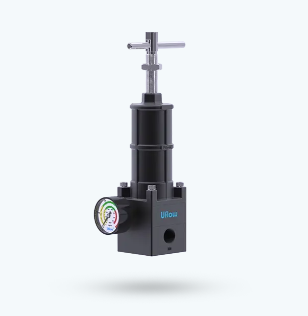

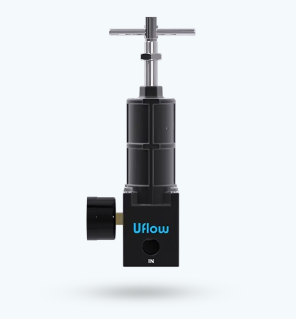

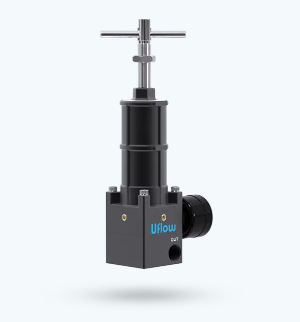

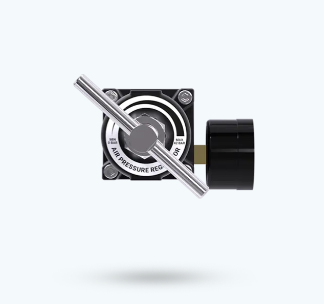

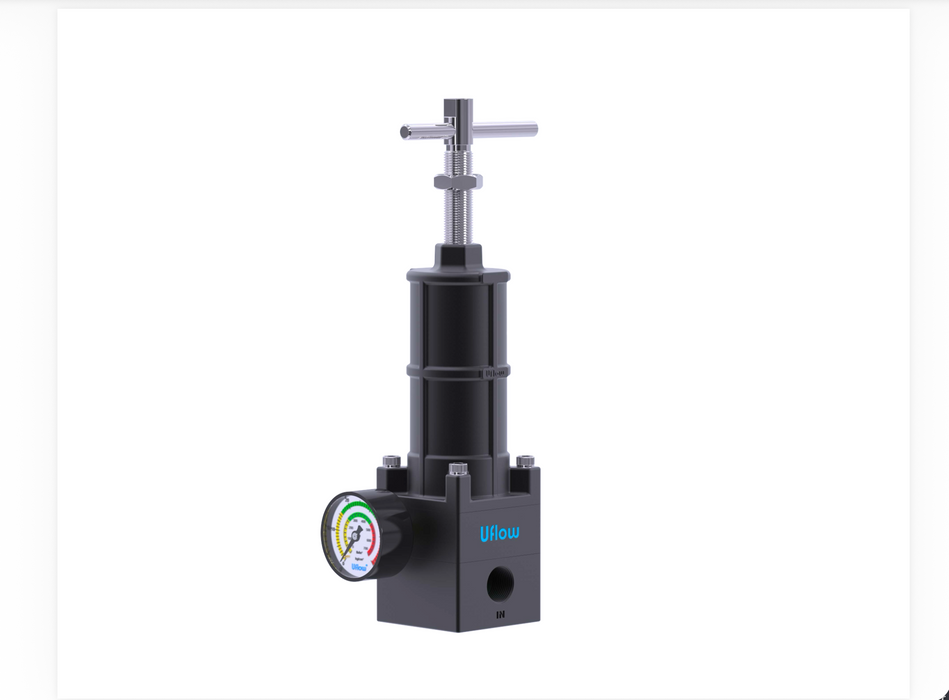

High Pressure Regulator (400 Bar) DR - Series

Valve Information
Type:                  Piston Type, Self Relieving
Body:                 WCB, Aluminium
Port Size:            ½ BSP Female
Media:               Compressed Air (Filtered & Lubricated)
Orifice:               12mm
Seals:                  Nitrile (NBR)
Temperature:      +5°C to +50°C
Pressure Range:   Inlet - 3 to 42 bar, Regulated 0 to 42 bar
Flow (NLPM) at 5 Bar:  2500 Normal litres per min
