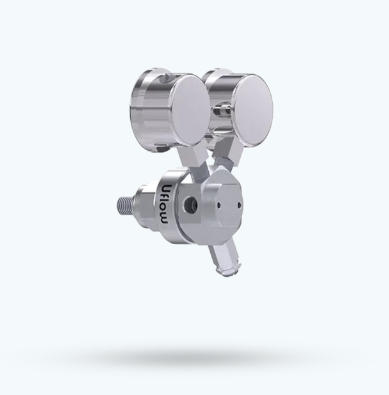

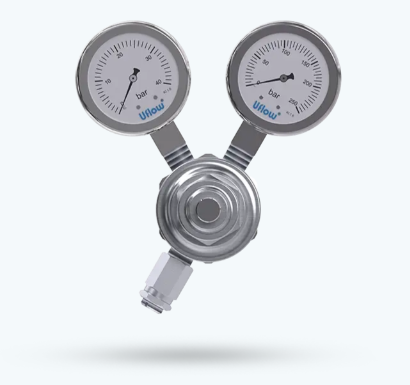

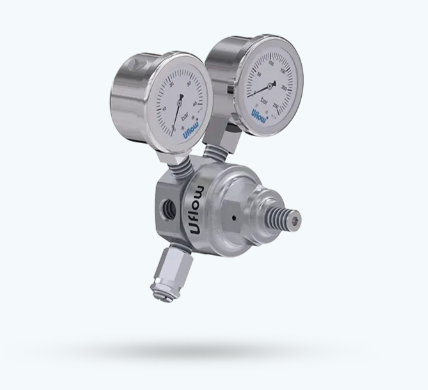

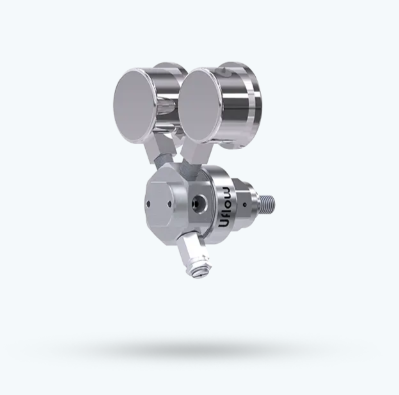

High Pressure Regulator (200 Bar) - DR Series

PRV Specifications
Type:                           Diaphragm Operated
Body:                          Aluminum(Hard Anodized)
Port Size:                    ¼” - NPT Female
Media:                        Nitrogen, O , Argon, etc...
Circumstance Temp:   -40°C to +110°C
Inlet Pressure:             200 Bar
Regulated Pressure:    0 to 25 Bar
Nominal Flow at 20 Bar
Outlet Pressure:        40 m³/hr
Safety Valve Cracking
Pressure:                   30 Bar (Adjustable)
