Diaphragm Accumulator

GXQ series diaphragm accumulators are used to absorb pulsation, shock, and compensation for leakage.

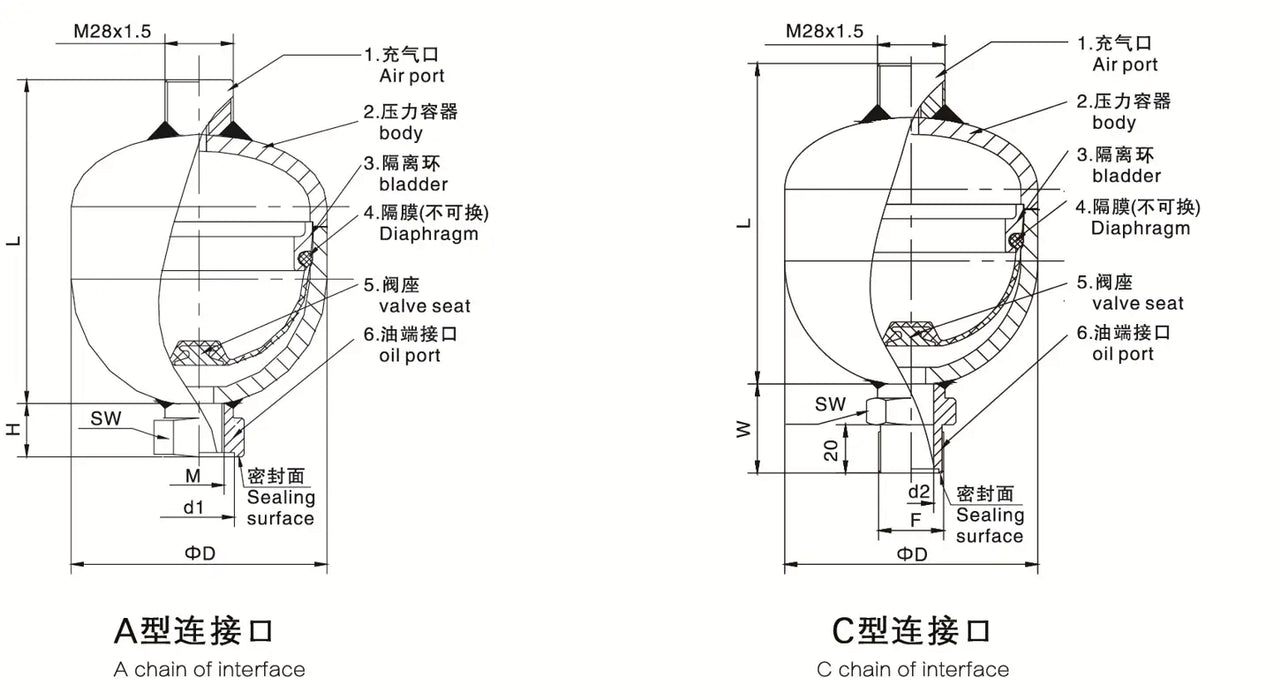

Internal structure
Diaphragm accumulator type: welded
Type A welding type: welded pressure vessel, the gas end can be GCQJ produced by our company
The inflatable tool is inflated, and the oil end connection can have many types: flexible diaphragm (not replaceable), used to isolate oil and gas. The valve seat at the bottom of the diaphragm.

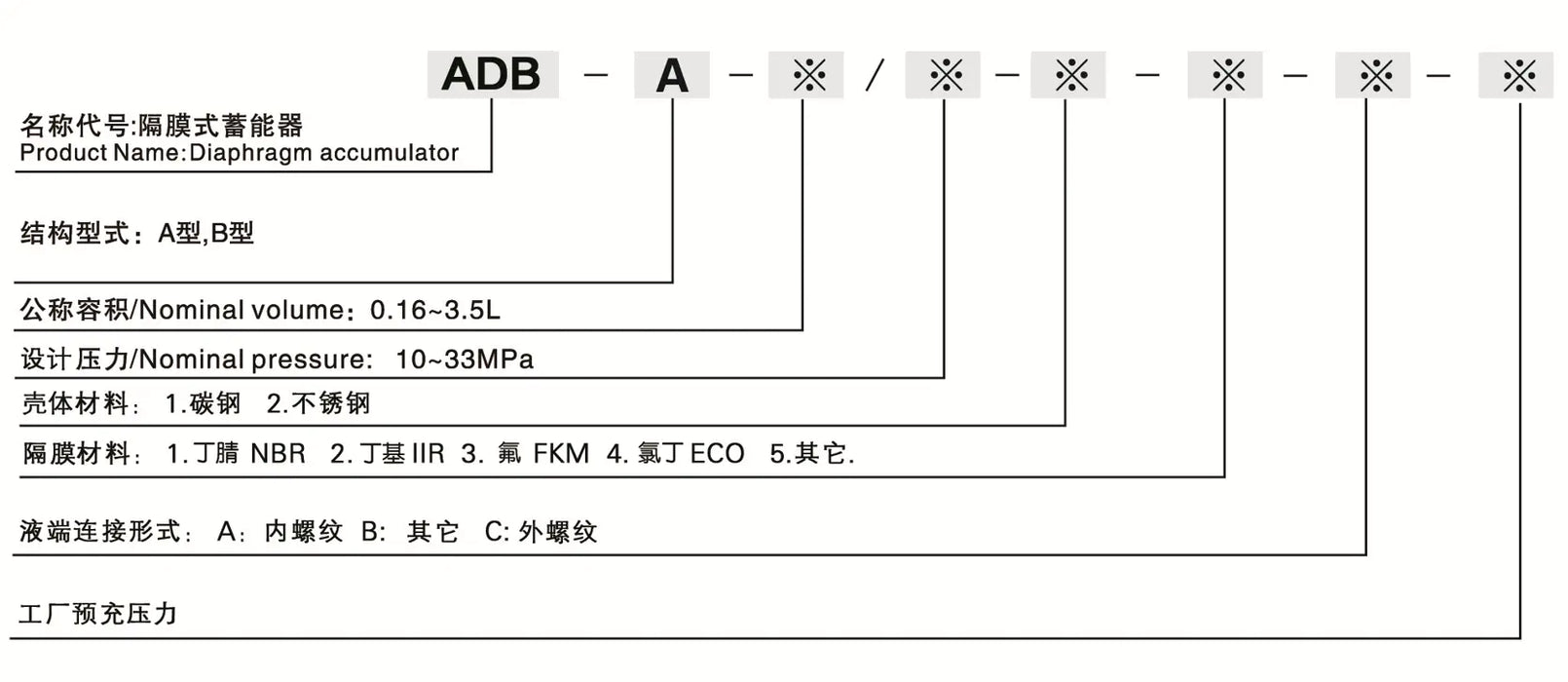

Ordering Instructions
① The full name of the model code must be stated when ordering, such as: the nominal volume is 0.75L, the design pressure is 21MPa, the shell material is carbon steel, the diaphragm material is NBR threaded connection, and the pre-charged pressure 5MPa welded diaphragm accumulator, ADB -A-0.75/21-1-1-A-5
② If there are special requirements for the interface size of the diaphragm accumulator, please consult with our company.
