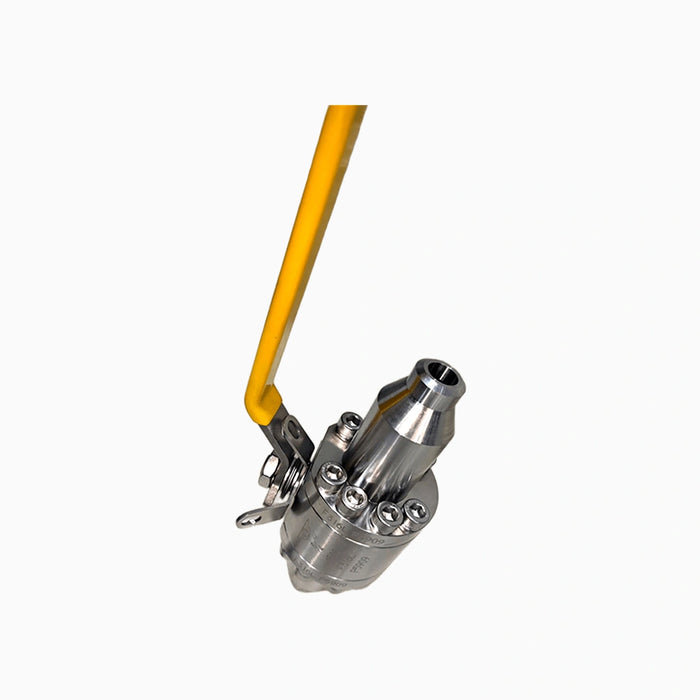

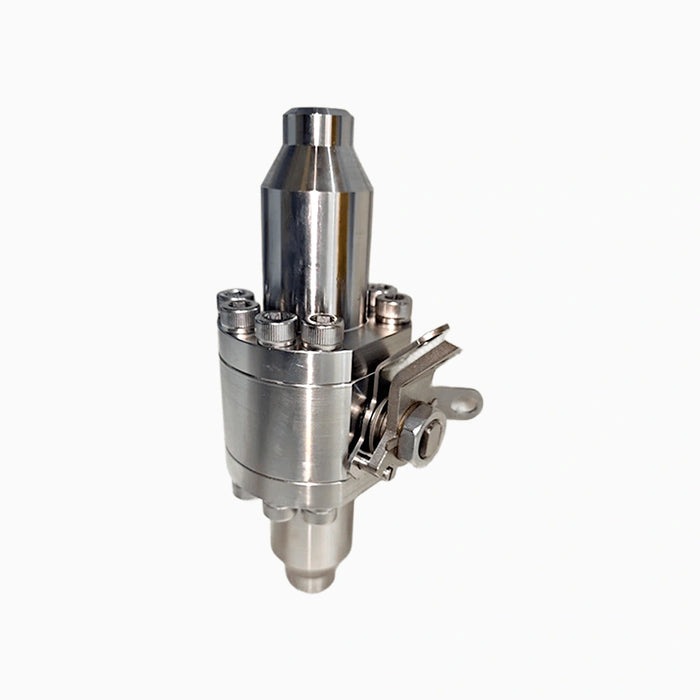

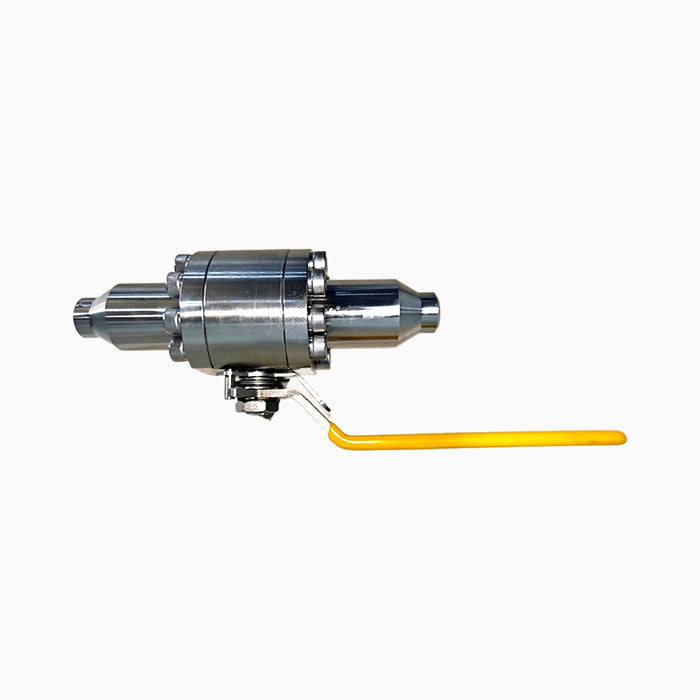

1500LB F316L Material Fully Welded Ball Valve
by Valvenok
Sold out
Original price
£0.00
-
Original price
£0.00
Original price
£0.00
£0.00
£0.00
-
£0.00
Current price
£0.00
Product Specification:
Holistic Process：Fully Welded
Sizes:1/2/DN15
Rating: Class1500/PN250
Body Material:F316L
Seat Material:Devlon
Packing Material:Graphite
Butt-weld ends: ASME B16.11
Operation: Lever
Design& manufacture: API 6D/API 608/DIN 3357
Inspection and test: API 598/API 6D/DIN 3230/EN 12266
Fire safe: API 607/API 6FA
Fugitive emission: ISO 15848-2/ISO 15848-1
Specification
| NO. | Part Name | Material |
| 17 | Nut | SS304 |
| 16 | Lever | Carbon+Zn |
| 15 | Disc spring | SS304 |
| 14 | Pin | Stainless steel |
| 13 | Packing | Graphite |
| 12 | Thrust Washer | SS304 |
| 11 | 0-Ring | VITON AED |
| 10 | Thrust Washer | NYLON |
| 9 | Stem | A182 F316L+ENP |
| 8 | Aniislatic device | SS316 |
| 7 | Seat Ring | DEVLON |
| 6 | Ball | A182 F316L |
| 5 | Body | A182 F316L |
| 4 | 0-Ring | VITON AED |
| 3 | Gasket | 316L+Graphite |
| 2 | Bonnet | A182 F316L |
| 1 | Bonnet Bolt | A4-70 |
