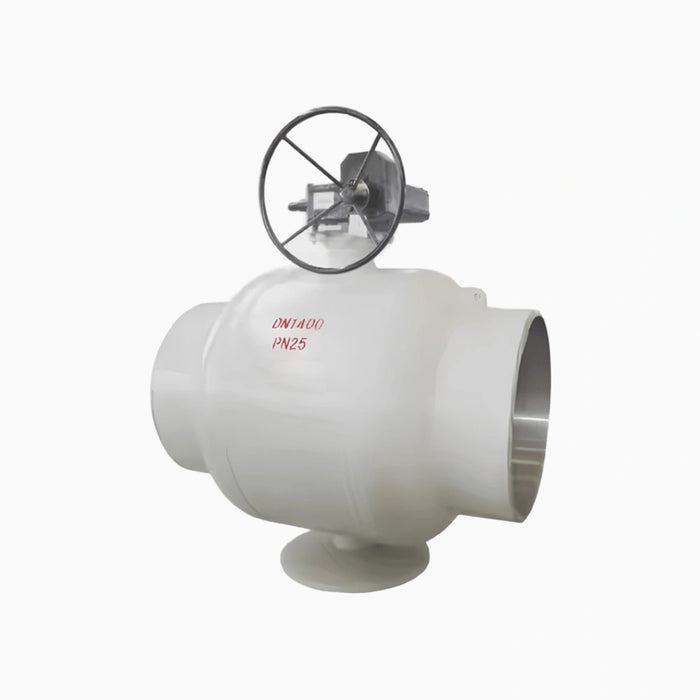

Gear Box DN1400 PN25 Fully Welded Ball Valve
by Valvenok
Sold out
Original price
£0.00
-
Original price
£0.00
Original price
£0.00
£0.00
£0.00
-
£0.00
Current price
£0.00
Product Description:
Nominal Diameter: DN1400
Bore: Full Bore
Nominal Pressure: PN25
Material: ANSI1020
Operation: Gear Box
Design Standard: API 6D
Test/Inspection: API598
End Connection: RF FLANGE
Flange standard: EN1092-1,ASME/ANSI B16.5
Specification
| Valve Size | 1“–10” |
|---|---|
Pressure Class |
150LB–600LB, PN10–PN64 |
Materials |
WCB, A105, LF2, F316, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A |
Design and Manufacturing Standards |
API 6D， API 608，ASME B16.34，ISO 17292，BS5351， |
Face to Face Standards |
ASME B16.10, BS 558, BS12982, ISO 5752 |
Flange Dimension Standards |
ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627 |
Pressure Test Standards |
API598 API 6D BS12569 |
Fire Safety Test Standards |
API 6FA API 607 |
Quality/Product Certifications |
ISO9001, ISO14001, ISO18001 |
Fugitive Emissions |
ISO 15848-1, API 622 |
NACE |
NACE MR 0175 |
Valve operator options |
Handwheel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator. |
Shutoff Class |
API 598 (Zero Leakage), API 6D |
Bore |
Full Bore, Reduced Bore |
Process Connection Types |
SW, NPT, BW , RF, RTJ |
