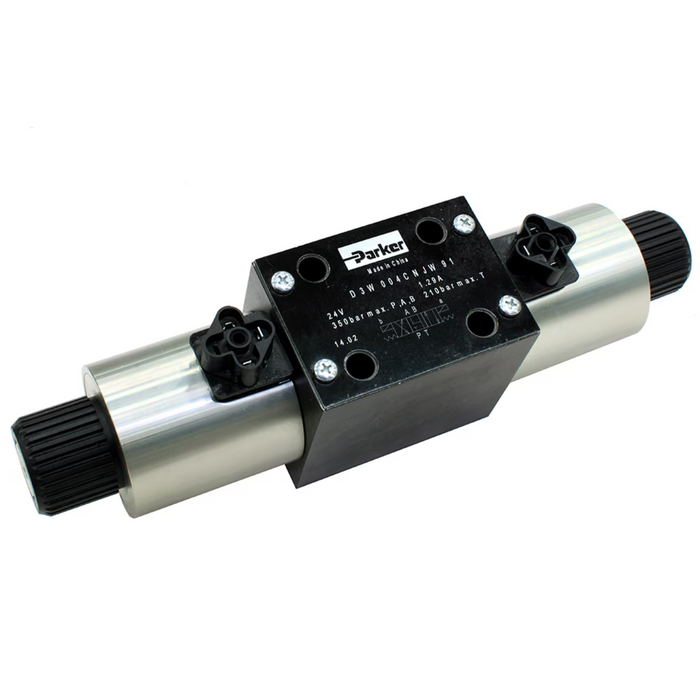

Directional Control Valve SD41VW - PARKER
Parker's robust and durable pilot operated directional control valves series D31DW, D31NW, D*1VW are almost universally applicable and ensure a reliable operation. A wide variety of spools and options allows to design an unlimited number of hydraulic circuits.
The pilot operated directional control valves are available in 4 sizes: D31DW (standard) and D31NW (high flow) in NG10/NFPA D05, D41VW in NG16/NFPA D07, D81VW (for port diameter up to 26 mm) and D91VW (for port diameter up to 32 mm) in NG25/NFPA D08 and D111VW in NG32/NFPA D10.
All sizes are optionally available with position control.
Markets:
• Industrial
Features/Benefits:
• Proven robust design that represents our long-term experience in hydraulics
• Wide range of spools - suitable for almost all hydraulic circuits
• High functional limits – low forces resulting in safe operation also at high flow rates
• Low pressure drop – resulting in low energy losses in operation
• Short delivery time – no warehousing necessary
• Optionally with position control
• Optionally without manual override
• Optionally as explosion-proof version
Applications:
• Suitable for general hydraulic applications
Note:
The minimum pilot pressure must be ensured for all operating conditions of the directional valve. Additionally spools with a P to T connection in the deenergized position need an external pressure supply (external inlet) or an integral check valve.
| Input Voltage: | 24 VDC |
| Connection Type: | Connector as per EN 175301-803, solenoid identification as per ISO 9461 (code W) |
| Pilot Connection (Inlet/Drain): | Internal/Internal |
| Accessories Included: | Standard valve w/o accessories |
| Series: | D41VW |
| Spool Code: | 004 |
| Material - Seals: | N - NBR |
| Spool Position: |
K - 2 positions, spring offset in position 0, operated in position b B - 2 positions, spring offset in position b, operated in position a D - 2 positions, operated in position a or b, no center or offset position C - 3 positions, spring offset in position 0, operated in position a or b |
| Product Type: | Directional spool valve |
| Actuation Type: | Solenoid |
| Operation Type: | Pilot |
| Interface Type: | DIN 24340 A16 / ISO 4401 / NFPA D07 |
| Maximum Operating Pressure: | P, A B, X: 350; T, Y: 105 bar |
| Maximum Flow Rate: | 300 L/min |
| Solenoid Option: | Omit - manual override (standard) |
| Ingress Protection Rating: | IP65 in accordance with EN 60529 (with correctly mounted plug-in connector) |
| Weight: | 9.7 kg |
