Directional Control Valve SD1VW - PARKER

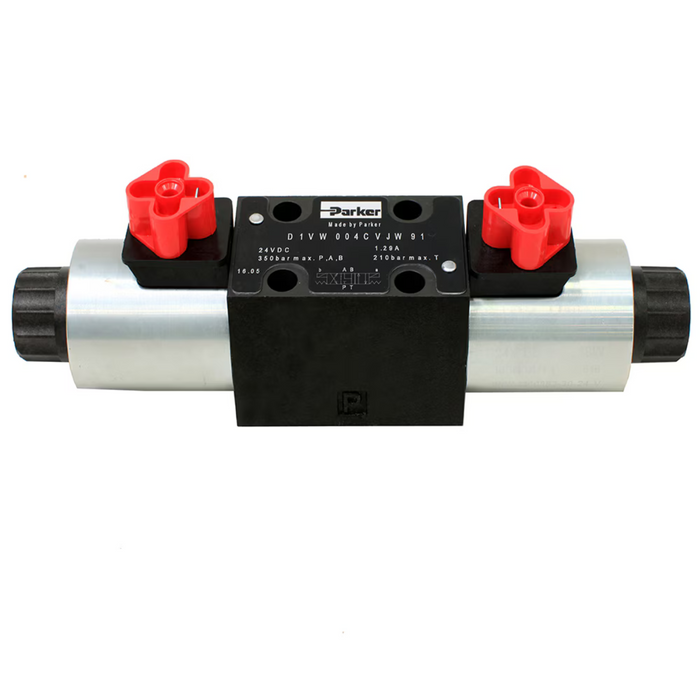

The directional control valve series D1VW in NG06 (CETOP 03 / NFPA D03) provides high functional limits up to 80 l/min in combination with a very low, energy-saving pressure drop due to optimised flow passages. The maximum pressure is 350 bar.
A wide variety of spools and options allows to design an unlimited number of hydraulic circuits. The D1VW is available with a soft shift option for smooth operation. An additional orifice in the solenoid anchor dampens the shifting time.
Markets:
• Industrial
Features/Benefits:
• Compact, proven design that represents our long-term experience in hydraulics
• Wide range of spools - fits all hydraulic systems
• Shortest lead time - no warehousing necessary
• Optional soft shift option - for smooth operation
• Optional manual override
Applications:
• Suitable for general hydraulic applications
| Input Voltage: | 24 VDC |
| Connection Type: | Connector as per EN 175301-803, solenoid identification as per ISO 9461 (code W) |
| Product Series: | S Series |
| Material - Seals: | N - NBR |
| Product Type: | Directional spool valve |
| Spool Position: |
C - 3 positions, spring offset in position 0, operated in position a or b Spool Code: 004 |
|
B - 2 positions, spring offset in position b, operated in position a Spool Code: 020 |
|
|
H - 2 positions, spring offset in position a, operated in position b Spool Code: 020 |
|
|
E - 2 positions, spring offset in position 0, operated in position a Spool Code: 001 |
|
|
D - 2 positions, operated in position a or b, no center or offset position Spool Code: 020 |
|
|
M - 2 positions, Spring offset in position a, operated in position 0 Spool Code: 001 |
|
|
K - 2 positions, spring offset in position 0, operated in position b Spool Code: 004 |
|
|
F - 2 positions, Spring offset in position b, operated in position 0 Spool Code: 001 |
|
| Actuation Type: | Solenoid |
| Size: | DIN NG06 / CETOP 03 / NFPA D03 nom |
| Interface Type: | DIN 24340 A6 / ISO 4401 / CETOP RP 121-H / NFPA D03 |
| Maximum Operating Pressure: | P, A, B: 350; T: 210 bar |
| Maximum Flow Rate: | 80 (depending on spool, see shift limits) L/min |
| Solenoid Option: | Omit - manual override (standard) |
| Ingress Protection Rating: | IP65 in accordance with EN 60529 (with correctly mounted plug-in connector) |
| Weight: | 2.1 kg / 1.5 kg |
| Maximum Operating Temperature: | 60 °C |
| Minimum Operating Temperature: | -25 °C |
| Body Material: | Gray Iron |
