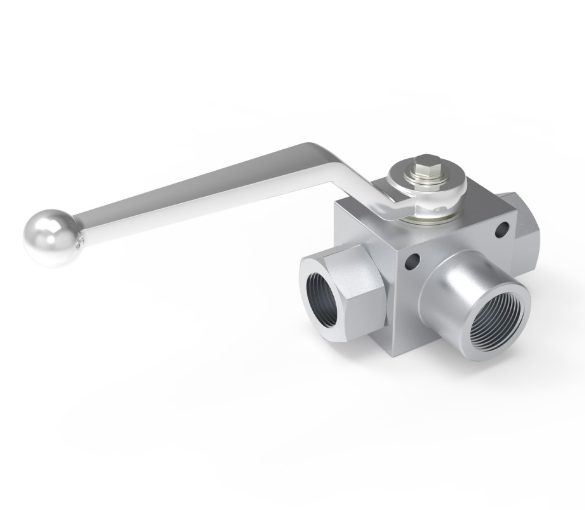

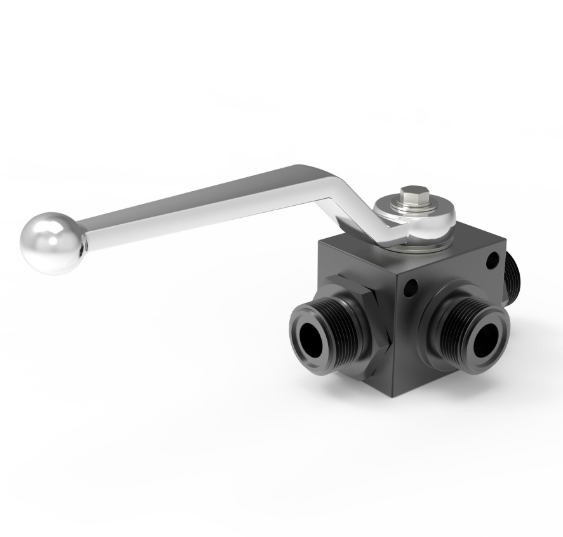

VH3V Series Two-position Three-way High Pressure Ball Valve
by Valvenok
Save 30%
Original price
£31.54
Original price
£31.54
-
Original price
£107.39
Original price
£31.54
Current price
£22.08
£22.08
-
£75.17
Current price
£22.08
Model：VH3V Series Two-position Three-way High Pressure Ball Valve
Joint Standard: SAE J518C standard
Pressure Grade: 210.420 bar
Nominal Diameter:13/20/255/32 40/50mm
Valve Body and joint material: Carbon steel
Ball and control mandrel material: Carbon steel
Ball seal:POM
Joint seal and Control mandrel seal: NBR/FPM
Handle Type: Casting zinc crooked handle
Surface treatment: Zinc plated
(1) Series Code:
VH3VSeries

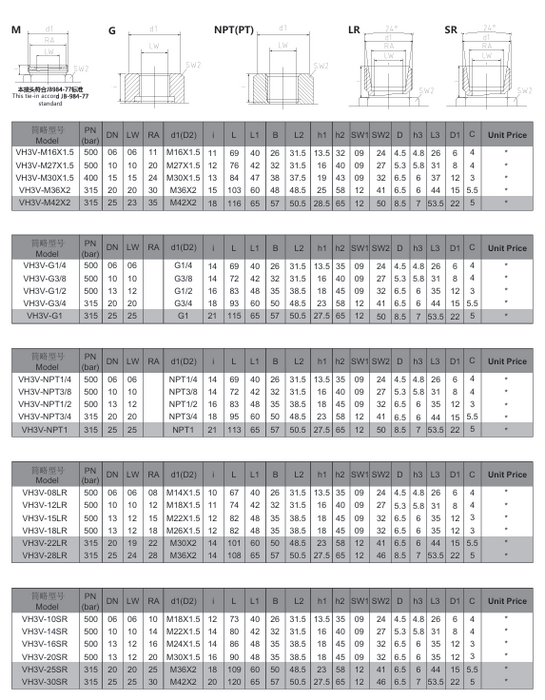

(2) oint Code：
M**、G**、**LR、PT**、NPT**
(3) Valve Material：
1- Steeel

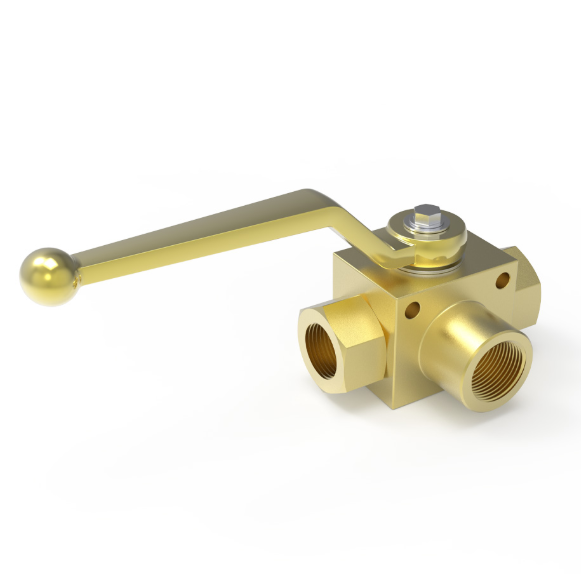

2- Brass
3- Stainless Steel
(4) Ball Material：
1- Steeel
2- Brass
3- Stainless Steel
(5) Operating Temperature：
1.-25~+100°C
2.-30~+170°C
(6) Other Airproof：
2-NBR
4-FPM
(7) Handle Type：
01- Aluminum alloy crank
02- Aluminum alloy straight handle
03- Zinc alloy crank
04- Zinc Alloy straight Shank
05- Steel crank
06- Steel Straight handle
(8) Design Number:
To be decided by the manufacturer
(9) Surface Disposal：
Default plating blue white zinc
Please specify other requirements
