YJZQ Series High Pressure Female Ball Valve
by Valvenok
Save 30%
Original price
£57.04
Original price
£53.70
-
Original price
£322.17
Original price
£57.04
Current price
£39.93
£37.59
-
£225.52
Current price
£39.93

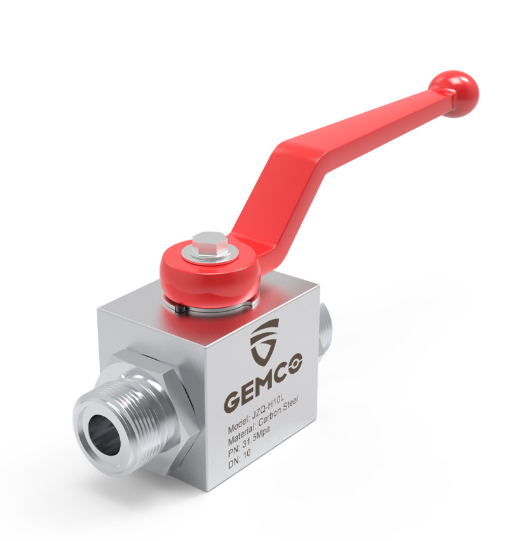

Model：YJZQ Series High Pressure Manual Type Ball Valve
Joint Standard: SAE J518C standard
Pressure Grade: 210.420 bar
Nominal Diameter:13/20/255/32 40/50mm
Valve Body and joint material: Carbon steel
Ball and control mandrel material: Carbon steel
Ball seal: POM
Joint seal and Control mandrel seal: NBR/FPM
Handle Type: Casting zinc crooked handle
Surface treatment: Zinc plated
(1) Property Code：
(2) Product Name Code：
(3) Said pressure：
(4) Nominal diameter：
10、15、20、25、32、40、50mm
J-31.5Mpa、H-20Mpa
Y- Hydraulic pressure
JZQ- Spherical shutoff valve
J
(5) Connection：
N-/Internal thread
NG-/Pipe thread
7G./Taper pipe thread
W-/External thread
(2) Product Name Code：
(3) Said pressure：
(4) Nominal diameter：
10、15、20、25、32、40、50mm
J-31.5Mpa、H-20Mpa
Y- Hydraulic pressure
JZQ- Spherical shutoff valve
J
(5) Connection：
N-/Internal thread
NG-/Pipe thread
7G./Taper pipe thread
W-/External thread
